The information viewable over SNMP is defined by the Management Information Base (MIB). MIB's describe the structure of the management data and use hierarchical object identifiers (OID). Each OID can be read via an SNMP management application.
MIB Download
The MIB can be downloaded here.
ADC OID
ROOT OID
iso.org.dod.internet.private.enterprise = .1.3.6.1.4.1
Our OIDs
.38370 jetnexusMIB
.1 jetnexusData (1.3.6.1.4.1.38370.1)
.1 jetnexusGlobal (1.3.6.1.4.1.38370.1.1)
.2 jetnexusVirtualServices (1.3.6.1.4.1.38370.1.2)
.3 jetnexusServers (1.3.6.1.4.1.38370.1.3)
.1 jetnexusGlobal (1.3.6.1.4.1.38370.1.1)
.1 jetnexusOverallInputBytes (1.3.6.1.4.1.38370.1.1.1.0)
.2 jetnexusOverallOutputBytes (1.3.6.1.4.1.38370.1.1.2.0)
.3 jetnexusCompressedInputBytes (1.3.6.1.4.1.38370.1.1.3.0)
.4 jetnexusCompressedOutputBytes (1.3.6.1.4.1.38370.1.1.4.0)
.5 jetnexusVersionInfo (1.3.6.1.4.1.38370.1.1.5.0)
.6 jetnexusTotalClientConnections (1.3.6.1.4.1.38370.1.1.6.0)
.7 jetnexusCpuPercent (1.3.6.1.4.1.38370.1.1.7.0)
.8 jetnexusDiskFreePercent (1.3.6.1.4.1.38370.1.1.8.0)
.9 jetnexusMemoryPercent (1.3.6.1.4.1.38370.1.1.9.0)
.10 jetnexusCurrentConnections (1.3.6.1.4.1.38370.1.1.10.0)
.2 jetnexusVirtualServices (1.3.6.1.4.1.38370.1.2)
.1 jnvirtualserviceEntry (1.3.6.1.4.1.38370.1.2.1)
.1 jnvirtualserviceIndexvirtualservice (1.3.6.1.4.1.38370.1.2.1.1)
.2 jnvirtualserviceVSAddrPort (1.3.6.1.4.1.38370.1.2.1.2)
.3 jnvirtualserviceOverallInputBytes (1.3.6.1.4.1.38370.1.2.1.3)
.4 jnvirtualserviceOverallOutputBytes (1.3.6.1.4.1.38370.1.2.1.4)
.5 jnvirtualserviceCacheBytes (1.3.6.1.4.1.38370.1.2.1.5)
.6 jnvirtualserviceCompressionPercent (1.3.6.1.4.1.38370.1.2.1.6)
.7 jnvirtualservicePresentClientConnections (1.3.6.1.4.1.38370.1.2.1.7)
.8 jnvirtualserviceHitCount (1.3.6.1.4.1.38370.1.2.1.8)
.9 jnvirtualserviceCacheHits (1.3.6.1.4.1.38370.1.2.1.9)
.10 jnvirtualserviceCacheHitsPercent (1.3.6.1.4.1.38370.1.2.1.10)
.11 jnvirtualserviceVSStatus (1.3.6.1.4.1.38370.1.2.1.11)
.3 jetnexusRealServers (1.3.6.1.4.1.38370.1.3)
.1 jnrealserverEntry (1.3.6.1.4.1.38370.1.3.1)
.1 jnrealserverIndexVirtualService (1.3.6.1.4.1.38370.1.3.1.1)
.2 jnrealserverIndexRealServer (1.3.6.1.4.1.38370.1.3.1.2)
.3 jnrealserverChAddrPort (1.3.6.1.4.1.38370.1.3.1.3)
.4 jnrealserverCSAddrPort (1.3.6.1.4.1.38370.1.3.1.4)
.5 jnrealserverOverallInputBytes (1.3.6.1.4.1.38370.1.3.1.5)
.6 jnrealserverOverallOutputBytes (1.3.6.1.4.1.38370.1.3.1.6)
.7 jnrealserverCompressionPercent (1.3.6.1.4.1.38370.1.3.1.7)
.8 jnrealserverPresentClientConnections (1.3.6.1.4.1.38370.1.3.1.8)
.9 jnrealserverPoolUsage (1.3.6.1.4.1.38370.1.3.1.9)
.10 jnrealserverHitCount (1.3.6.1.4.1.38370.1.3.1.10)
.11 jnrealserverRSStatus (1.3.6.1.4.1.38370.1.3.1.11)
Historical Graphing

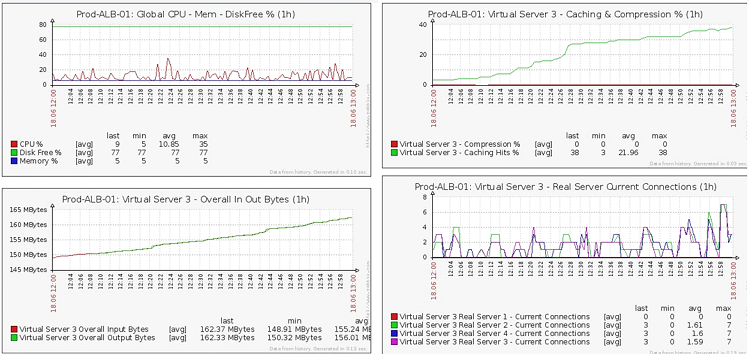

The best use for the ADC’s Custom SNMP MIB is the ability to offload the historical graphing to a management console of your choice. Below are some examples from Zabbix that polls an ADC for various OID values listed above.
