Action
The action is the task or tasks that are enabled once the condition or conditions have been met.
Action
Double click on the Action column to view drop-down list.
Target
Double click on the Target column to view the drop-down list. The list will change depending on the Action.
You may also type manually with some actions.
Data
Double click on the Data column to manually add your data that you wish to add or replace.
The list of all the actions are detailed below:
|
Action
|
Description
|
Example
|
|
Add Request Cookie
|
Add request cookie detailed in the Target section with value in Data section
|
Target= Cookie
Data= MS-WSMAN=afYfn1CDqqCDqCVii
|
|
Add Request Header
|
Add a request header of Target type with value in Data section
|
Target= Accept
Data= image/png
|
|
Add Response Cookie
|
Add Response Cookie detailed in the Target section with value in Data section
|
Target= Cookie
Data= MS-WSMAN=afYfn1CDqqCDqCVii
|
|
Add Response Header
|
Add request header detailed in the Target section with value in the Data section
|
Target= Cache-Control
Data= max-age=8888888
|
|
Body Replace All
|
Search the Response Body and replace all instances
|
Target= HTTP:// (Search string)
Data= HTTPs:// (Replacement string)
|
|
Body Replace First
|
Search the Response Body and replace first instance only
|
Target= HTTP:// (Search string)
Data= HTTPs:// (Replacement string)
|
|
Body Replace Last
|
Search the Response Body and replace last instance only
|
Target= HTTP:// (Search string)
Data= HTTPs:// (Replacement string)
|
|
Drop
|
This will drop the connection
|
Target= N/A
Data= N/A
|
|
e-Mail
|
Will send an email to the address configured in Email Events. You can use a variable as the address or the message
|
Target= “flightPATH has emailed this event”
Data= N/A
|
|
Log Event
|
This will log an event to the System log
|
Target= “flightPATH has logged this in syslog”
Data= N/A
|
|
Redirect 301
|
This will issue a permanent redirect
|
Target= HTTP://www.edgenexus.io
Data= N/A
|
|
Redirect 302
|
This will issue a temporary redirect
|
Target= HTTP://www.edgenexus.io
Data= N/A
|
|
Remove Request Cookie
|
Remove request cookie detailed in the Target section
|
Target= Cookie
Data= MS-WSMAN=afYfn1CDqqCDqCVii
|
|
Remove Request Header
|
Remove request header detailed in the Target section
|
Target=Server
Data=N/A
|
|
Remove Response Cookie
|
Remove response cookie detailed in the Target section
|
Target=jnAccel
|
|
Remove Response Header
|
Remove the response header detailed in Target section
|
Target= Etag
Data= N/A
|
|
Replace Request Cookie
|
Replace request cookie detailed in the Target section with value in the Data section
|
Target= Cookie
Data= MS-WSMAN=afYfn1CDqqCDqCVii
|
|
Replace Request Header
|
Replace request header in the Target with Data value
|
Target= Connection
Data= keep-alive
|
|
Replace Response Cookie
|
Replace the response cookie detailed in Target section with value in Data section
|
Target=jnAccel=afYfn1CDqqCDqCVii
Date=MS-WSMAN=afYfn1CDqqCDqCVii
|
|
Replace Response Header
|
Replace the response header detailed in Target section with value in Data section
|
Target= Server
Data= Withheld for Security
|
|
Rewrite Path
|
This will allow you to redirect the request to new URL based on the condition
|
Target= /test/path/index.html$querystring$
Data= N/A
|
|
Use Secure Server
|
Select which secure server or virtual service to use
|
Target=192.168.101:443
Data=N/A
|
|
Use Server
|
Select which server or virtual service to use
|
Target= 192.168.101:80
Data= N/A
|
|
Encrypt Cookie
|
This will 3DES Encrypt cookies and then base64 encode them
|
Target= Enter the cookie name to be encrypted, you may use the * as a wild card at the end
Data= Enter a pass phrase for the encryption
|
Example:

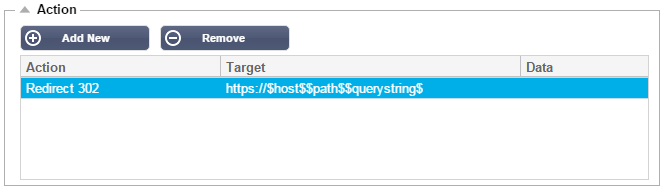

The action below will issue a temporary redirect to the browser to a secure HTTPS Virtual Service. It will use the same hostname, path, and querystring as the request.
