SNMP
The SNMP section allows the configuration of the SNMP MIB residing within the ADC. The MIB can then be queried by third-party software capable of communicating with devices equipped with SNMP.

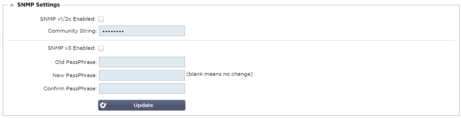

SNMP Settings
|
Option
|
Description
|
|
SNMP v1 / V2C
|
Tick the checkbox to enable the V1/V2C MIB.
SNMP v1 conforms with RFC-1157. SNMP V2c conforms with RFC-1901-1908
|
|
SNMP v3
|
Tick the checkbox to enable the V3 MIB. RFC-3411-3418.
The username for v3 is admin.
Example:- snmpwalk -v3 -u admin -A jetnexus -l authNoPriv 192.168.1.11 1.3.6.1.4.1.38370
|
|
Community String
|
This is the read-only string set on the agent and used by the manager to retrieve the SNMP information. The default community string is jetnexus
|
|
PassPhrase
|
This is the password needed when SNMP v3 is enabled and must be at least 8 characters or more and contain letters Aa-Zz and numbers 0-9 only. The default passphrase is jetnexus
|
