System History

In the System section, there is the System History option, allowing the delivery of historical data for elements such as CPU, memory, requests per second, and other features. Once enabled, you can view the results in graphical form via the View > History page. This page will also allow you to backup or restore your history files to the local ADC.

Collect Data

· To enable the collection of data, please tick the checkbox.

· Next, set the time interval at which you wish the ADC to collect the data. This time value can range between 1-60 seconds.

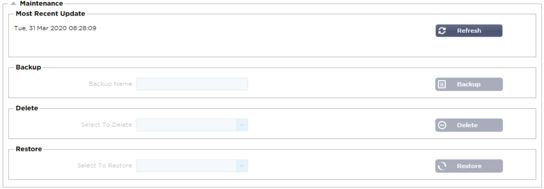

Maintenance

This section will be greyed out if you have enabled historical logging. Please untick the Enabled checkbox in the Collect Data section and click Update to allow the maintenance of the historical logs.

Backup

Give your backup a descriptive name. Click Backup to backup all the files to the ADC

Delete

Select a backup file from the drop-down list. Click Delete to remove the backup file from the ADC

Restore

Select a previously stored backup file. Click Restore to populate the data from this backup file.
