1. Proceed to Library > Authentication using the navigation panel of the ADC
2. You will now see the Authentication Servers section on the right panel.
3. Click Add Server

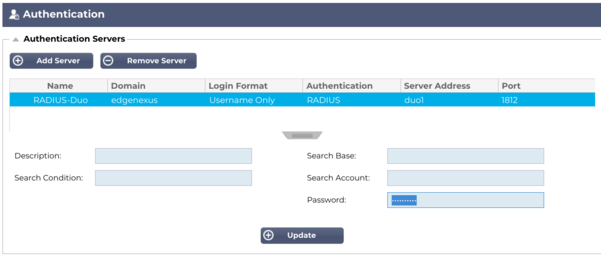

4. A new area will appear, showing fields that you will need to fill in. An example of the filled-in fields is shown below.
|
Field Name
|
Example and description
|
|
Name
|
The name can be any alphanumeric value, but for ease of understanding, let's use RADIUS-Duo
|
|
Domain
|
The value here should be your domain
|
|
Description
|
Optional, this value describes this entry
|
|
Login format
|
Select 'Username and Password' from the drop-down
|
|
Authentication
|
Select RADIUS from the drop-down
|
|
Server
|
The value you provide here should be the same as the name you gave your Cisco Duo Authentication Proxy – this is important.
|
|
Port
|
1812 is the standard Port used
|
|
Password
|
The RADIUS Secret
|
|
Search
|
Left blank
|
|
Search Base
|
Left blank
|
