By default when the ADC is created it is populated and configured to use the eth0 network interface. We will need to add the new network interface we created earlier and prepare a virtual service for use.

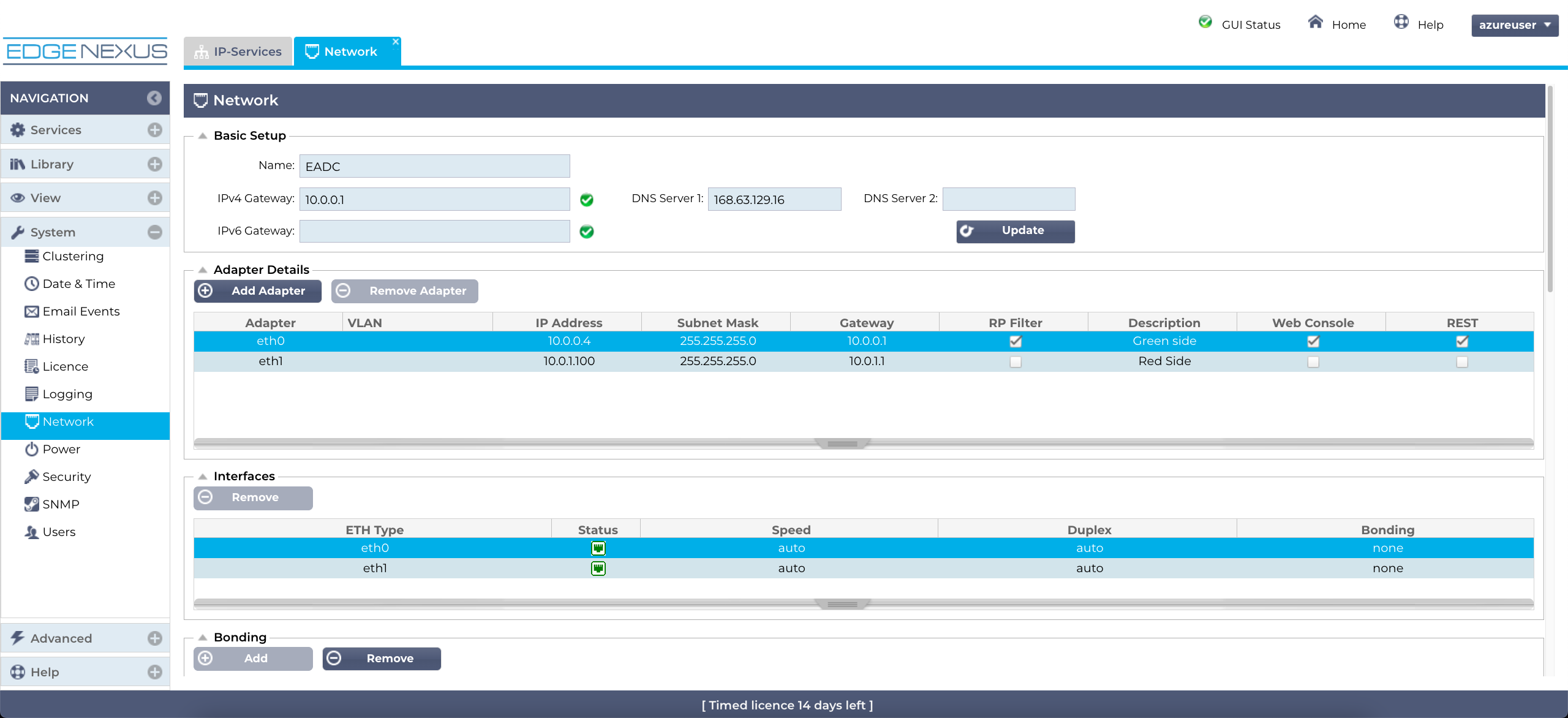

Below you will find the Networking page of the EdgeADC.
We have already added eth1 as you can see, but the process is extremely simple.
· Click Add Adapter
· You will see a new line placed under eth0 in the Adapter Details section.
· By default the new line will state eth0, but you can use the dropdown menu to select eth1.
· Once you have done that, you can provide the IP Address that was provided by Azure for this network interface. In our case, its 10.0.1.100.
· Provide the appropriate netmask and the Gateway IP address. The Gateway IP address normally ends with 1 and as you can see its 10.0.1.1 in our example.
· Click Update and the networking layer of the ADC will restart.
· You will also need to enter the specific Gateway IP address for eth0.
· If the Ethernet interface connects successfully, you will see its icon show Green in the Interfaces section.
