When an App is downloaded and deployed, it is yet to be operational. It has to be given an IP address in the same subnet as the EdgeADC and ports through which it needs to be accessible.
· Navigate to Library > Add-Ons and locate the HA Cloud Connector App.

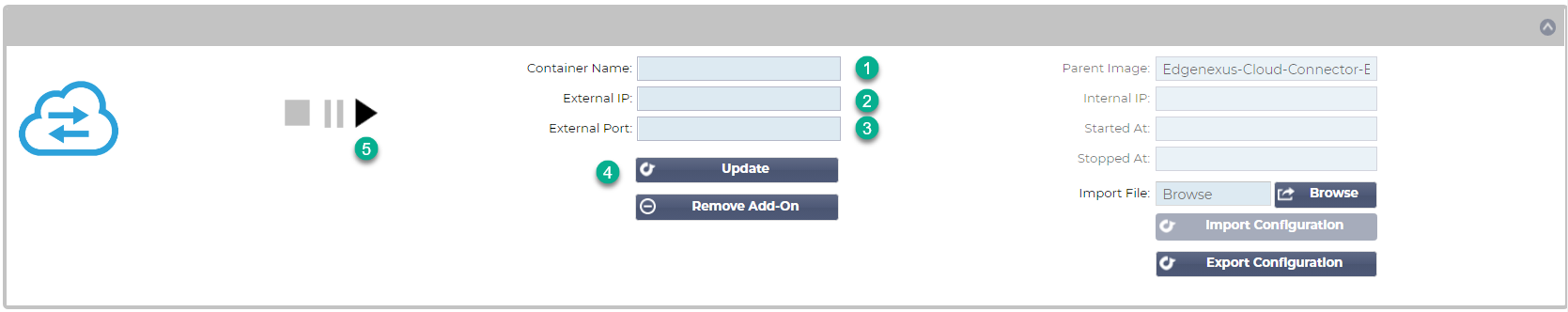

· It should look something like the image below.
· Give the Add-On a name – the EdgeADC's internal DNS system uses this to refer to the App when needed.
· Enter the value for the External IP . This value should equal the Private IP given to NIC1 of the AWS Instance.
· Enter a value of 5005/tcp for the External Port ❸.
· Once you have done this, click the Update button to initialize the App.
· Click the PLAY icon above to activate the App into an operational state.

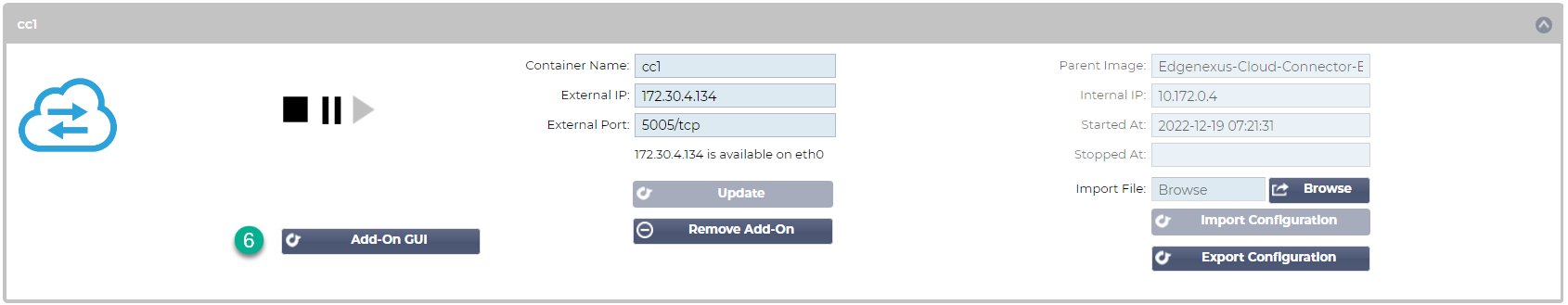

· Once operational, it will look like the following image and be listed in the Services section as an embedded App.
· Note the Add-On GUI button to launch the App GUI and the Pause App and Stop App buttons. Clicking the Add-On GUI button will open the App management screen in another browser tab.
Note: You will need to do this on the HA Cloud Connector on each ADC.
