The System > Logging page allows you to set the W3C logging levels and specify the remote server to which logs will be automatically exported. The page is organized into the four sections below.
W3C Logging Details
Enabling W3C logging will cause the ADC to start recording a W3C compatible log file. A W3C log is an access log for Web servers in which text files are generated containing data about each access request, including the source Internet Protocol (IP) address, the HTTP version, the browser type, the referrer page, and the time stamp. The format was developed by the World Wide Web Consortium (W3C), an organization that promotes standards for the evolution of the Web. The file is in ASCII text, with space-delimited columns. The file holds comment lines beginning with the # character. One of these comment lines is a line indicating the fields (providing column names) so that data can be mined. There are separate files for HTTP and FTP protocols.
W3C Logging Levels
There are different logging levels available, and depending on the service type, the data provided varies.
The table below describes logging levels for W3C HTTP.
Value
Description
None
W3C logging is off.
Brief
The fields present are: #Fields: time c-ip c-port s-ip method uri x-c-version x-r-version sc-status cs-bytes sr-bytes rs-bytes sc-bytes x-percent time-taken x- round-trip-time cs(User-Agent) x-sc(Content-Type).
Full
This is a more processor-compatible format with separate date and time fields. See the fields summary below for information on what the fields mean. The fields present are: #Fields: date time c-ip c-port cs-username s-ip s-port cs-method cs-uri-stem cs-ur- -query sc-status cs(User-Agent) referer x-c-version x-r-version cs-bytes sr-bytes rs-bytes sc-bytes x-percent time-taken x-roun-trip-time x-sc(Content-Type).
Site
This format is very similar to “Full” but has an additional field. See the summary of the fields below for information on what the fields mean. The fields present are: #Fields: date time x-mil c-ip c-port cs-username s-ip s-port cs-host cs-method cs-uri-stem cs-ur--query sc-status cs(User-Agent) referer x-c-version x-r-version cs-bytes sr-bytes rs-bytes sc-bytes x-percent time-taken x-round--trip-time x-sc(Content-Type).
Diagnostic
This format is filled with all sorts of information relevant to development and support staff. See the fields summary below for information on what the fields mean. The fields present are: #Fields: date time c-ip c-port cs-username s-ip s-port x-xff x-xffcustom cs-host x-r-ip x-r-port cs-method cs-uri-stem cs-uri-query sc-status cs(User-Agent) referer x-c-version x-r-version cs-bytes sr-bytes rs-bytes sc-bytes x-percent time-taken x-round-trip-time x-trip-times(new,rcon,rqf,rql,tqf,tql,rsf,rsl,tsf,tsl,dis,log) x-closed-by x- compress-action x-sc(Content-Type) x-cache-action X-finish
The table below describes logging levels for W3C FTP.
Value
Description
Brief
#Fields: date time c-ip c-port s-ip s-port r-ip r-port cs-method cs-param sc-status sc-param sr-method sr-param rs-status rs-param
This option allows you to set what ADC information should be included in the W3C logs.
Value
Description
Client’s Network Address and Port
The value shown here displays the actual client IP address along with the port.
Client’s Network Address
This option will include and only show the actual client IP address.
Forwarded-For Address and Port
This option will show the details held in the XFF header, including the address and port.
Forwarded-For Address
This option will show the details held in the XFF header, including the address only.
Include Security Information
This menu consists of two options:
Value
Description
On
This setting is global. When set to on, the username will be appended to W3C log when any Virtual Service is using Authentication and has W3C logging enabled.
Off
This will turn off the ability to log the username to the W3C log on a global level.
Remote Syslog Server
In this section, you can configure two external Syslog servers to send all system logs.
· Add the IP address of your Syslog server
· Add the Port
· Choose TCP or UDP
· Tick the box
· Click Update

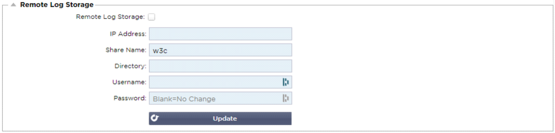

Remote Log Storage
All W3C logs are stored in compressed form onto the ADC every hour. The oldest files will be deleted when 30% of disk space is remaining. Should you wish to export these to a remote server for safekeeping, you can configure this using an SMB share. Please note that the W3C log will not transfer to the remote location until the file has been completed and compressed. As the logs are written every hour, this could take up to two hours in a Virtual Machine appliance and five hours for a hardware appliance.
We will include a test button in future releases to provide some feedback that your settings are correct.
Col1
Col2
Remote Log Storage
Tick the box to enable remote log storage
IP Address
Specify the IP address of your SMB server. This should be in dotted decimal notation. Example: 10.1.1.23
Share Name
Specify the share name on the SMB server. Example: w3c.
Directory
Specify the directory on the SMB server. Example: /log.
Username
Specify the username for the SMB share.
Password
Specify the password for the SMB share
Field Summary
Condition
Description
Date
Not localised = always YYYY-MM-DD (GMT/UTC)
Time
Not localised = HH:MM:SS or HH:MM:SS.ZZZ (GMT/UTC) * Note-unfortunately this has two formats (Site
has no .ZZZ milliseconds)
x-mil
Site format only = millisecond of time stamp
c-ip
Client IP as best can be derived from network or X-Forwarded-For header
c-port
Client port as best can be derived from network or X-Forwarded-For header
cs-username
Client’s user-name request field
s-ip
ALB’s listening port
s-port
ALB’s listening VIP
x-xff
Value of X-Forwarded-For header
x-xffcustom
Value of configured-named X-Forwarded-For type request header
cs-host
Host name in the request
x-r-ip
IP address of Real Server used
x-r-port
Port of Real Server used
cs-method
HTTP request method * except Brief format
method
* Only brief format uses this name for cs-method
cs-uri-stem
Path of the requested resource * except Brief format
cs-uri-query
Query for the requested resource * except Brief format
uri
* brief format logs a combined path and query-string
millisecond from connect to posting in “newbie list”
millisecond from connect to placing the connection to the Real Server
acon
millisecond from connect to finishing placing the connection to the Real Server
rcon
millisecond from connect to establishing real-server connection
rqf
millisecond from connect to receiving the first byte of request from the client
rql
millisecond from connect to receiving the last byte of request from the client
tqf
millisecond from connect to sending the first byte of request to the Real Server
tql
millisecond from connect to sending the last byte of request to the Real Server
rsf
millisecond from connect to receiving the first byte of response from the Real Server
rsl
millisecond from connect to receiving the last byte of response from the Real Server
tsf
millisecond from connect to sending the first byte of response to the client
tsl
millisecond from connect to sending the last byte of response to the client
dis
millisecond from connect to disconnect (both sides – last one to disconnect)
log
millisecond from connect to this log record usually followed by (Load-balance policy and reasoning)
x-round-trip-time
How long ALB took in seconds
x-closed-by
What action caused the connection to be closed (or kept open)
x-compress-action
How compression was carried out, or prevented
x-sc(Content-Type)
Content-Type of response
x-cache-action
How caching responded, or was prevented
x-finish
Trigger that caused this log row
Clear Log Files
This feature allows you to clear the log files from the ADC. You can select the type of log you wish to delete from the drop-down menu and then click the Clear button.
