Testing the HA Cloud Connector is very simple. Just follow the procedure below.

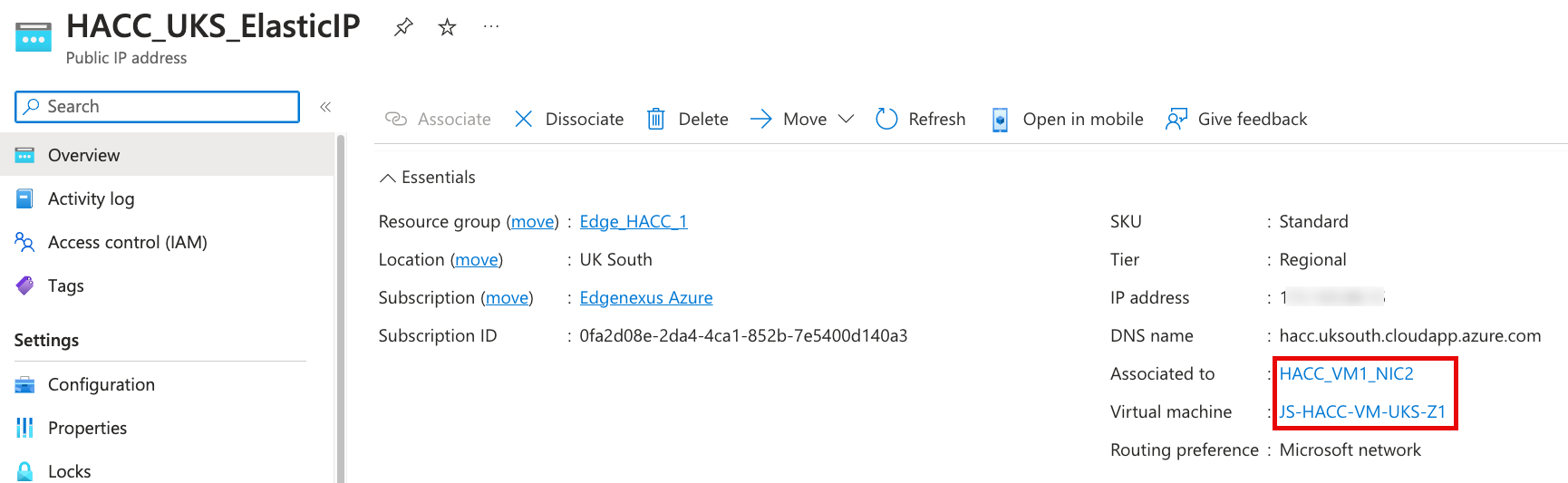

1. Navigate to the Overview page of the Public IP you created (Elastic IP).
· Note that the IP is associated with eth1 (NIC2) of VM1.

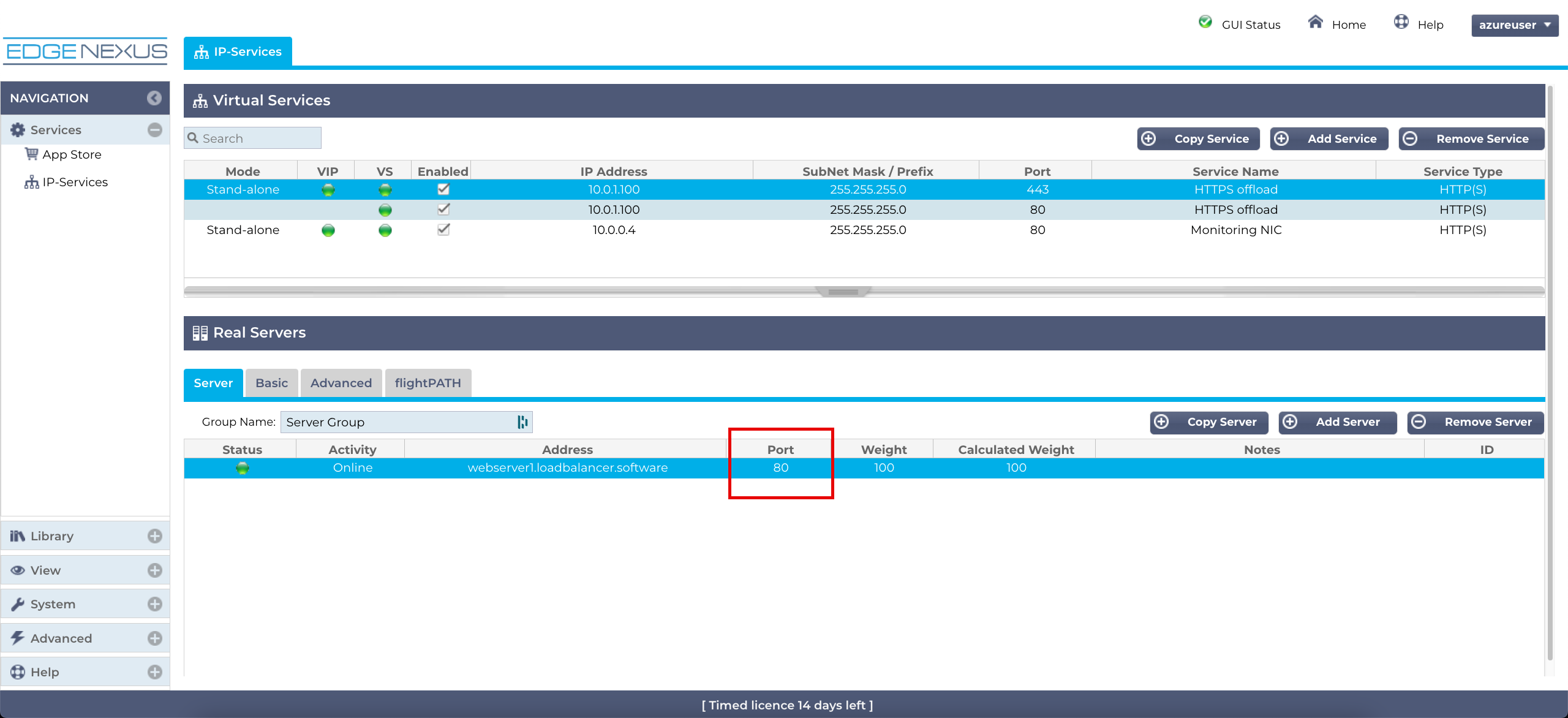

· Now, go to the IP Services page of ADC1.
· Click on the Monitoring VIP.
· In the lower Real Servers section, change the port to something other than the working port.

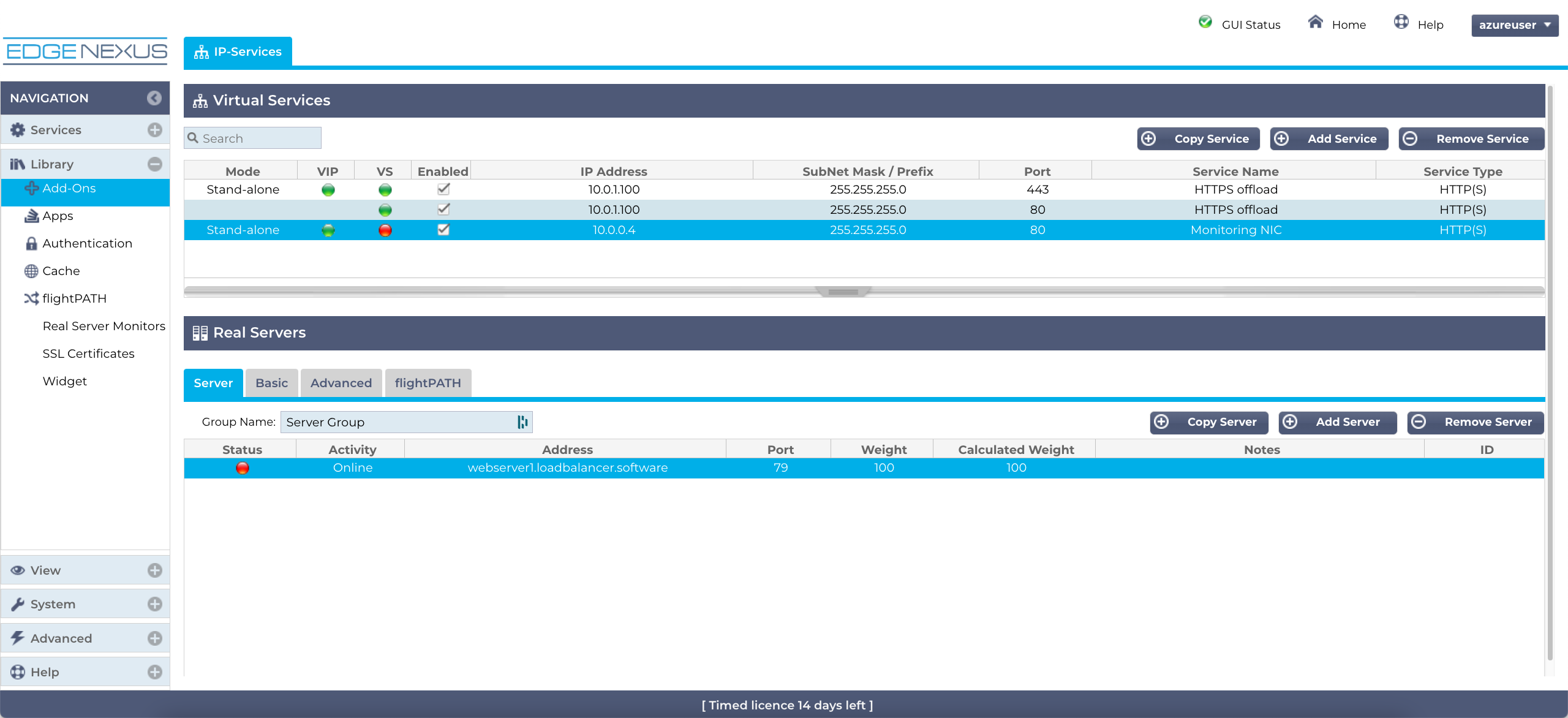

· This makes the service status turn RED as the VIP is no longer communicating with the Real Server.

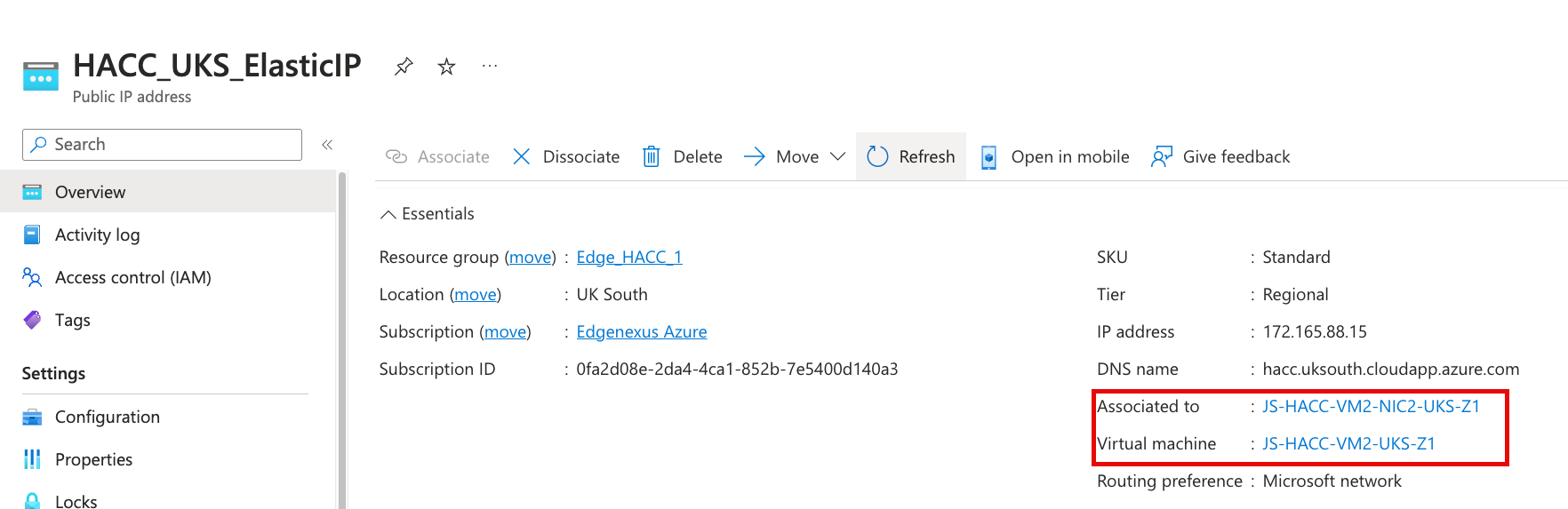

· Now go back to the Overview page for the Public IP.
· Check the Association for the NIC and VM (see below).

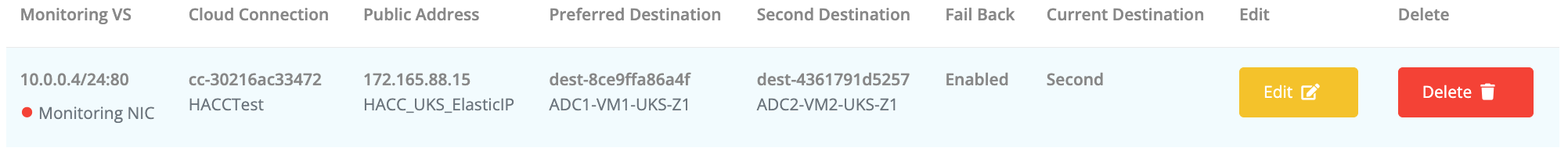

· You can also check the Services page in the HACC application.
· Traffic is now going to ADC2 on VM2.
· Reverse the port change we made back to the original, and services will switch back to ADC1 on VM1 if you have enabled the Failback option in the Services configuration page.
