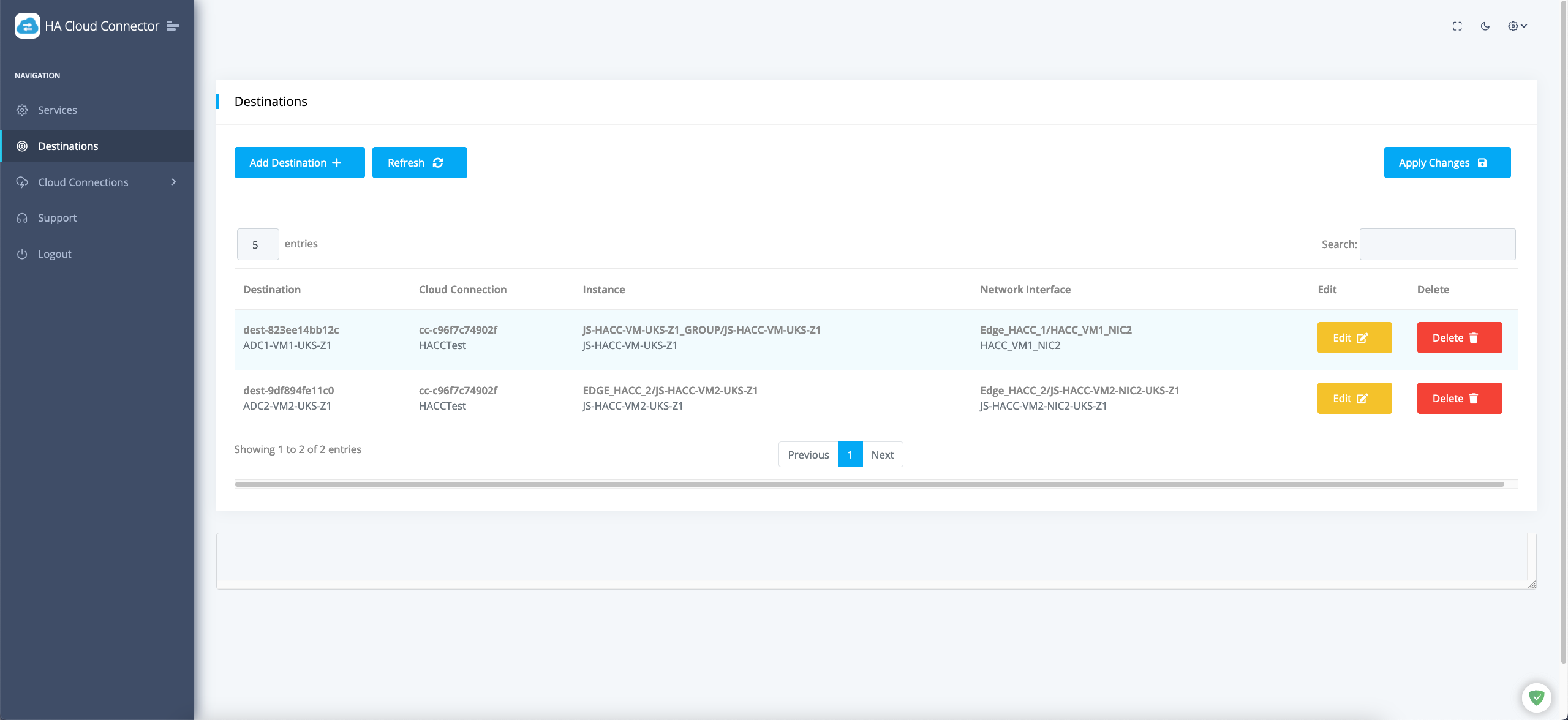

Defining Destinations for HA

The next stage is to add the destinations to which the Elastic IP will be directed in case of failure of a service or ADC.

· Click Add Destination

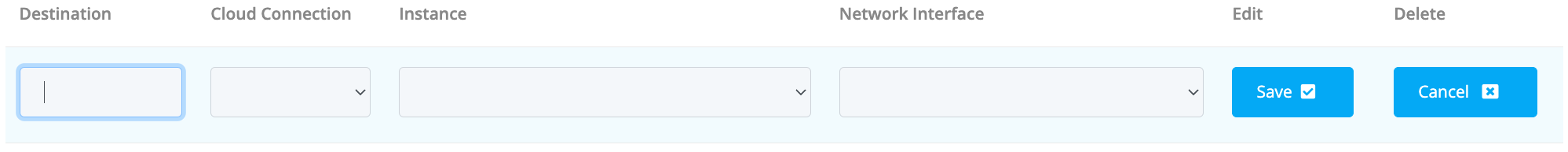

· You will be presented with a blank field entry line comprising a number of dropdown menus.

· In the Destination field, enter a descriptive value. We have used ADC1-VM1-UKS-Z1, but you can use whatever you wish.

· Next click the Cloud Connection menu and select the Cloud Connection you defined.

· Next click the Instance dropdown menu and select VM1.

· Next click on the Network Interface field, and select NIC2 on VM1.

· Click Save.

For the second definition we will repeat the above steps.

· Click Add Destination

· You will be presented with a blank field entry line comprising a number of dropdown menus.

· In the Destination field, enter a descriptive value. We have used ADC2-VM2-UKS-Z1, but you can use whatever you wish.

· Next click the Cloud Connection menu and select the Cloud Connection you defined.

· Next click the Instance dropdown menu and select VM2.

· Next click on the Network Interface field and select NIC2 on VM2.

· Click Save.

Once you have done, click the Apply Changes button.
